Choosing the Right Equipment: When to Use a Roots Blower or Rotary Lobe Pump

roots blower

Table of Contents

Selecting the right equipment for your application is crucial to achieving optimal performance and efficiency. In industrial processes, Roots Blowers and Rotary Lobe Pump are two types of equipment commonly used for various applications. In this article, we will discuss the differences between these two equipment types, their advantages, and disadvantages, and when it is appropriate to use them.

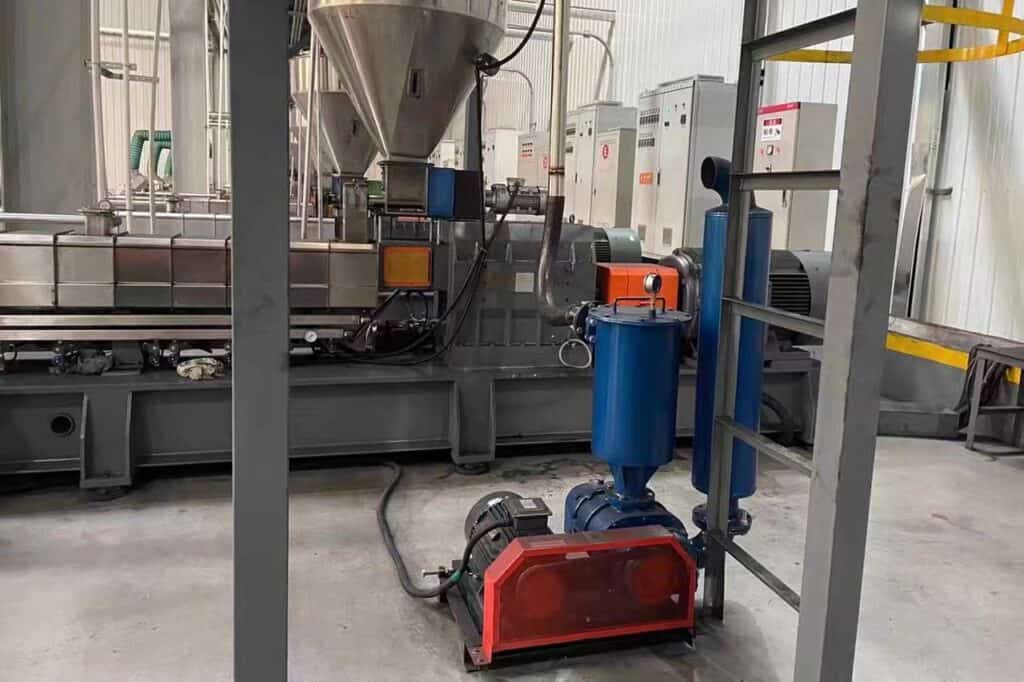

Roots Blower

Definition and operation

A Roots Blower, also known as a positive displacement blower, is a mechanical device that generates air flow by forcing air or gas through a pair of helical rotors. As the rotors rotate, they trap and compress air, which is discharged into the system. Roots Blower operates by volumetric displacement and is commonly used in applications that require low-pressure air or gas.

Advantages and disadvantages

One of the advantages of Roots Blower is its high volumetric efficiency, which allows it to generate large amounts of air or gas with minimal power consumption. It is also simple in design and requires minimal maintenance. However, Roots Blower is unsuitable for high-pressure air or gas applications, as it has a limited pressure ratio.

Applications

Roots Blower is commonly used in various industrial processes, including:

  • Wastewater treatment – for aeration and mixing of wastewater
  • Pneumatic conveying – for conveying powders, pellets, and granular materials
  • Chemical processing – for handling gases, vapors, and corrosive fluids
  • Other applications include vacuum generation, combustion air supply, and fluidization.

Rotary Lobe Pump

Definition and operation

A Rotary Lobe Pump, a positive displacement pump, is a mechanical device that pumps liquid by trapping it between two intermeshing rotors. As the rotors rotate, they seal and displace fluid from the last chamber to the next. Rotary Lobe Pump operates by volumetric displacement and is commonly used in applications requiring high-precision and gentle liquid handling.

Advantages and disadvantages

One of the advantages of the Rotary Lobe Pump is its high efficiency and accuracy in handling viscous liquids. It can also handle liquids with varying viscosities and temperatures. However, Rotary Lobe Pump is unsuitable for applications that involve transporting gases alone. It is designed to hold liquids and can cause operational issues if used for gas transportation.

Applications

Rotary Lobe Pump is commonly used in various industries, including:

  • Food processing – for pumping viscous food products such as creams, sauces, and doughs
  • Pharmaceuticals – for pumping high-value and sensitive liquids such as vaccines and drugs
  • Chemical processing – for handling sharp and corrosive liquids such as acids and solvents
  • Other applications include paper and pulp processing, oil and gas, and wastewater treatment.

Choosing the Right Equipment

Factors to consider

When choosing between a Roots Blower and a Rotary Lobe Pump, there are several factors to consider, including:

  • Flow rate – the amount of air or liquid required for the process
  • Pressure – the amount of force necessary to move the air or liquid through the system
  • Temperature – the temperature range of the air or liquid
  • Viscosity – the thickness or resistance of the air or liquid to flow
  • Efficiency – the amount of energy required to generate the required flow rate and pressure
  • Maintenance – the level of supervision necessary to ensure optimal performance and longevity
  • Cost – the initial and ongoing costs of the equipment.

Comparison between Roots Blower and Rotary Lobe Pump

Performance

Roots Blower is suitable for applications that require low-pressure air or gas, with a maximum pressure ratio of 1.5. On the other hand, Rotary Lobe Pump is ideal for applications requiring high-pressure liquids, with a pressure range of up to 20 bar.

Applications

A roots Blower is commonly used in applications such as wastewater treatment and pneumatic conveying, while Rotary Lobe Pump is widely used in applications such as food processing and pharmaceuticals.

Cost

A roots Blower is generally less expensive than Rotary Lobe Pump, especially for lower flow rates and pressure requirements. However, Rotary Lobe Pump may be more cost-effective for higher flow rates and pressure requirements due to its higher efficiency.

Maintenance

Roots Blower requires minimal maintenance; the main maintenance requirement is regular oil changes. Rotary Lobe Pump requires more care, including routine inspection and replacement of seals and bearings.

Conclusion

Selecting the right equipment for your industrial process is crucial to achieving optimal performance and efficiency. In this article, we have discussed the differences between Roots Blower and Rotary Lobe Pump, their advantages and disadvantages, and when it is appropriate to use them. Considering the abovementioned factors, you can choose the equipment that best suits your application and ensures optimal performance and longevity.

FAQs

Q: What is the main difference between a Roots Blower and Rotary Lobe Pump?

A: The main difference between a Roots Blower and a Rotary Lobe Pump is the type of fluid they handle. The roots Blower handles air or gas, while Rotary Lobe Pump handles liquid.

Q: What are the applications of Roots Blower?

A: Roots Blower is commonly used in wastewater treatment, pneumatic conveying, and chemical processing applications.

Q: What are the applications of a Rotary Lobe Pump?

A: Rotary Lobe Pump is commonly used in food processing, pharmaceuticals, chemical processing, as well as handling of sludge and wastewater in municipal and industrial settings.

Q: How do I determine the flow rate and pressure requirements for my application?

A: The flow rate and pressure requirements for your application depend on several factors, including the type of fluid being handled, the distance the fluid needs to travel, and the desired flow rate and pressure at the end of the system. Consulting with a specialist in fluid handling equipment can help you determine the appropriate flow rate and pressure for your application.

Q: What are the maintenance requirements for the Roots Blower and Rotary Lobe Pump?

A: Roots Blower requires minimal maintenance; the main maintenance requirement is regular oil changes. Rotary Lobe Pump requires more care, including routine inspection and replacement of seals and bearings.
